Apache Cassandra is a distributed Database Management System. In Cassandra, data is replicated among multiple nodes across multiple data centers. Its high Scalability and High availability, and ability to handle huge volumes of transactions with no single point of failure make it particularly beneficial to store and retrieve efficiently.

Why Cassandra in Conversational AI

  • Can’t afford data to be lost by any change
  • Can’t have our database down due to the outage of a single server

Further, it’s also easy to scale, making it ideal for our businesses that are consistently growing.

Why Backup and Restore:

Conversational AI API is intuitive and dynamic enough to read and write hundreds of data sets simultaneously. There might be a situation where—

  • Data might be accidentally deleted from disk/Database.
  • An error occurs in data due to third-party applications.
  • Data become corrupted.
  • Disk Failure.
  • Migrating data from one cloud platform to another platform and need to restore all data to the newly created Cassandra node.

In all the above situations, if we don’t have a periodic backup of data, then we may have to lose data by having no options to overcome these hurdles.

In case if we have to retrieve a large chunk of user data or transferring the data to another location can be a herculean task. So here comes the importance of periodic data backup.

Let’s See How To Use Cassandra Back And Restore Method

In Cassandra, data is replicated among multiple nodes across multiple data centres. Apache Cassandra stores its data in SSTable files. These SSTable files are in the keyspace directory within the data directory path specified by the ‘data_file_directories’ parameter in the cassandra.yaml file. In case if you don’t specify the path by default, the SSTable path will be var/lib/cassandra/data/<keyspace_name>.

For Example: If keyspace is system_auth then all data which are present in this keyspace will be stored in the below path.

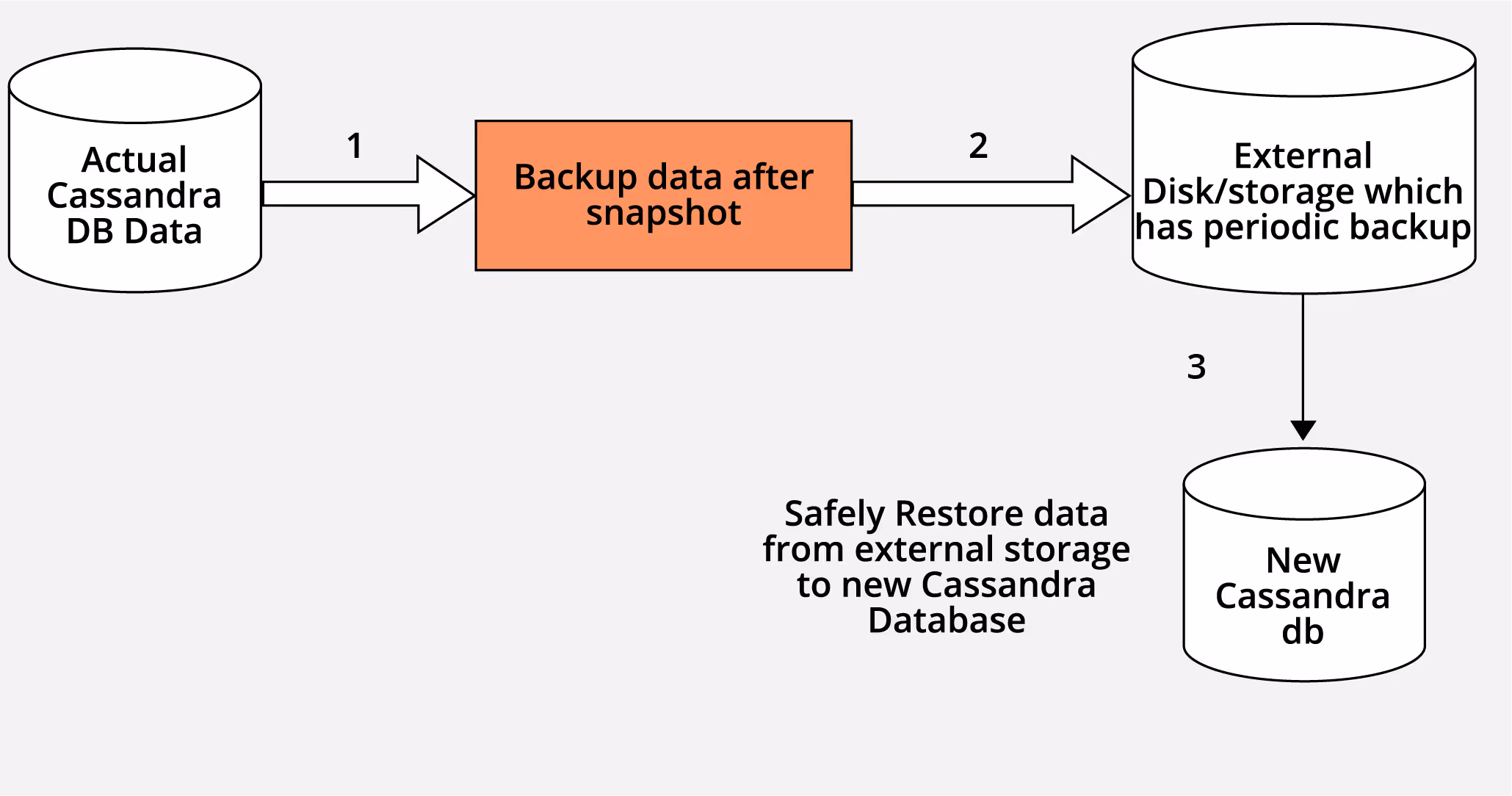

cassandra backup diagram

  1. Take a backup of existing data, it will be present in var/lib/cassandra/data/<keyspace>/<table>directory.
  2. Push your backup file to external storage.
  3. Pull data from external disk/storage and push it back safely to your new Cassandra cluster.

NOTE: In case If you are using a cloud platform like Google Cloud, you have the option to enable the Casandra backup manually and can later use it to recover the data or restore to the node point you desire. See Google Cloud’s Cassandra Backup documentation for more information.

If you’re using a separate location or server for your application, there are two methods to backup Cassandra Data:

  1. Snapshot based backup
  2. Incremental backup

Snapshot Based Backup:

The nodetool snapshot command flushes memtables to the disk and creates a snapshot by creating a hard link to SSTables. It is possible to take a snapshot of all keyspaces in a cluster, or certain selected keyspaces, or a single table in a keyspace. Nodetool utility is a command-line interface for managing a cluster provided by cassandra. This utility gives useful commands for creating snapshots of the data. Note that you must have enough free disk space on the node for taking the snapshot of your data files.

Let’s see how to take a single keyspace snapshot.

Assuming you already created keyspace, customers have some data present in it. Let’s see how to take a snapshot of this keyspace.

Step 1: Go to the Cassandra node using bin/bash

Step 2: Run the snapshot command

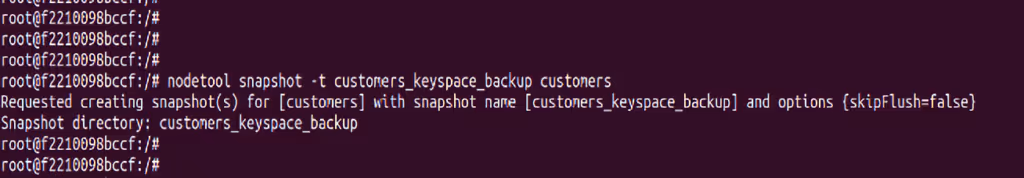

In the above picture,

nodetool snapshot – command to take a snapshot of Cassandra data

customers_keyspace_backup – this is the name we have given to the snapshot (If snapshot already exists with this name Cassandra will throw an error)

customers – this is keyspace name

The snapshot files will be present in the path var/lib/cassandra/data/<keyspace_name>/ by default in the snapshot’s directory of the particular keyspace.

Note: Make sure you have enough disk space on the server to store snapshots.

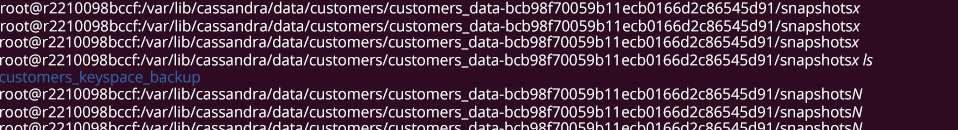

In Our case, the above snapshot can be found at, Var/lib/cassandra/data/customers/customer_data_/snapshots/

In this code —

customers – This is keyspace name

customer_data – This is the table name present inside keyspace customers

Step 3: After taking the snapshot, you can move the snapshot files to another location like AWS S3 or Google Cloud or MS Azure disk, etc., so that you can safely restore the data whenever required.

That’s it; you have successfully taken backup of your data.

For detailed information regarding Cassandra snapshots, see the Cassandra documentation.

Incremental Backup:

By default, incremental backup is disabled in cassandra. This can be enabled by changing the value of “incremental_backups” to “true” in the cassandra.yaml file. Once enabled, Cassandra creates a hard link to each memtable flushed to SSTable to a backup’s directory under the keyspace data directory. In Cassandra, incremental backups contain only new SSTable files; they are dependent on the last snapshot created.

Incremental Backup needs less disk space because it only contains links to new SSTable files generated since the last full snapshot.

Cassandra does not clear incremental backup files automatically. If you want to remove the hard-link files then write your own script for that. There is no built-in tool to clear them.

Cassandra Data Restore Method:

Let’s say you have snapshot present in an external disk or in any external storage, and you want to restore that data back to your Cassandra node.

The steps below will guide you for the same

Step 1: Assuming you have created a new node

Step 2: Create keyspace and table If not created already. Make sure the keyspace name, table name, and the columns which you created newly must match with the schema which was present earlier when you took the backup (snapshot)

Step 3: Locate the snapshot folder where you stored the snapshot took as a backup (In our case, we named it as customers_keyspace_backup and stored it in the s3 bucket) and copy all files from that snapshot SSTable directory to /var/lib/keyspace_name/table_name-UUID directory

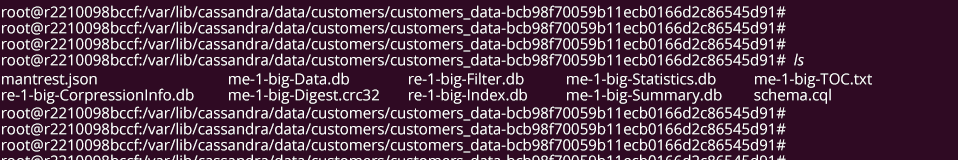

In our case, we have copied all files from the customers_keyspace_backup directory to the location
/var/lib/cassandra/data/customers/customers_data-bcb98f70059b11ecb8166d2c86545d91/

Note: In case if you have any data in /var/lib/keyspace_name/table_name-UUID directory, make sure you delete it before copying fresh data here)

Step 4: Run nodetool repair keyspace_name command.

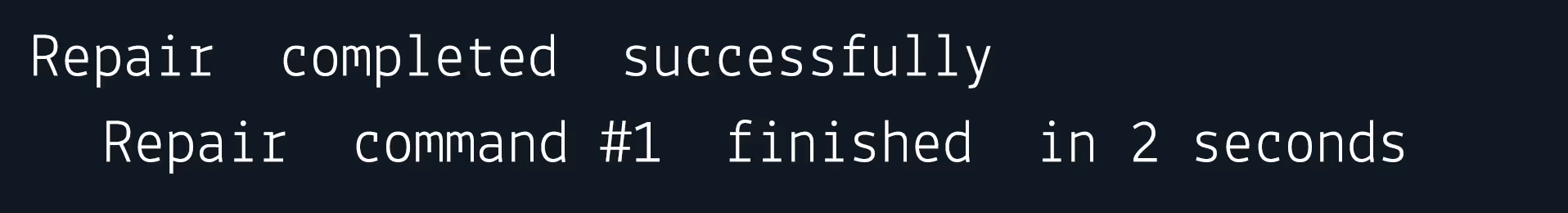

The command should show you output like this.

Cheers, you have successfully restored the data.

Cassandra restore methods are great for businesses that handle gigabytes and terabytes of data. The file sizes become considerably smaller so that when businesses can easily transfer the data or restore the lost data relatively faster when compared to other methods.

Conclusion:

In this post, you learned how to backup and restore a table into a Cassandra database. The number of nodes in the source and target database cluster doesn’t matter; in case if you have more than one node you have to repeat the same steps in all nodes in order to restore the data in all nodes of the cluster.
